Anatomy Pro

AnatomyPro (3D Anatomy)



Anatomy Pro was developed for VenturaDesigns, USA
Ventura designs
Contact http://www.3danatomy.com for details.

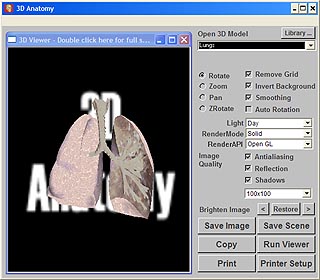

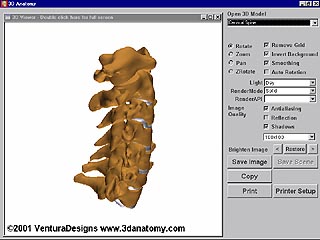

Program Interface
APro interface

This is a software package that combines a powerful 3D viewer and a complete collection of 3D anatomy models. This combination lets you open a 3D model, fully rendered on the screen. Then, in real time, you can . . .

  • Rotate
  • Zoom
  • Pan
  • Change Lighting
  • Render
  • Print
  • Save as image file
3D Models

Over 100 model are available and stored in password protected ZIP archives. Additional libraries of 3D models including 3D animation in most popular *.3ds and *.max 3D formats can be linked.

Features

Posture Analysis
AnatomyPro offers three basic level of access for users:.

  • Level 1- Open, view and manipulate models
  • Level 2- Above, plus printing capabilities
  • Level 3 -Above, plus file save as .bmp or .jpg

Level 3 access allows you to "pose" a scene, even scenes with animation. You can save the scene as an ultra high quality, ray traced image file. The images produced by AnatomyPro are Broadcast quality. As good as it gets You can also control the size of the image. From a thumbnail, to a poster sized image, every saved file will be clean and sharp

3D Rendering Engine Implementation

For this project we used 3D Exploration SDK with 3D Engine developed by Russian programmer and offered by www.xdsoft.com. The engine supported various 2D/3D import/export formats. Unfortunately 16-bit architecture of Toolbook didn't allow us to link 3D library in a form of DLL or specially written OCX control directly to TB application. This configuration of 16-bit host application and 32-bit library was unstable and sometimes crashed system. The same situation was with TSZD.DLL which we used for operation with ZIP archives.

The only solution we found was to write in C++ a separate 3DViewer 32-bit application that implemented all 32-bit stuff and to develop a special communication interface based on Windows SendMessage() function. 3DViewer was loaded on Anatomy Pro startup in child window of toolbook. Follow this link for details of building hybrid 16/32 bit toolbook applications.

As far as I know now 3D Exploration SDK is distributed by www.righthemisphere.com under name Deep Exploration SDK.

3D Exploration/Deep Exploration SDK
